Tork Gpr Pro 300Mhz Ground Radar
FARMET 8.18 METAL DETECTOR

Hardware features:
Central freq: 500 MHz
1024-512-256-128 scans per scan with 14bit resolution
Realtime Unique and portable to use GPR software
RPS: 100 KHz
Ultra high voltage
User selected strong realtime filters(digital)
Time window: 80nS
Power consumption: 5V, 500 mAh (external powerbank)
Optional Odometer
3d analyze on Voxler 2d analyze on Prism and its own software
Zero blind point
Very high resolution
Up to 20 hours continuous operating time
Free training
2 years of Farmet Warranty

Software Features:
English/Turkish realtime data software
9 different color pallettes are selectable
Realtime filters on operation
Realtime ground dielectrics selection
.sgy data outputs
Gain functions are realtime

Physical Features:
Weight: appr. 3kgs (only the antenna)

Usage Areas:

* Archeogeophysics

* Geophysics and Geological researching

* Mining

* Archeology

* Concrete analysis

* Municipalities

* Forensic/Crime investigations

* Bridge and Dam Installation analysis etc

PRODUCTS

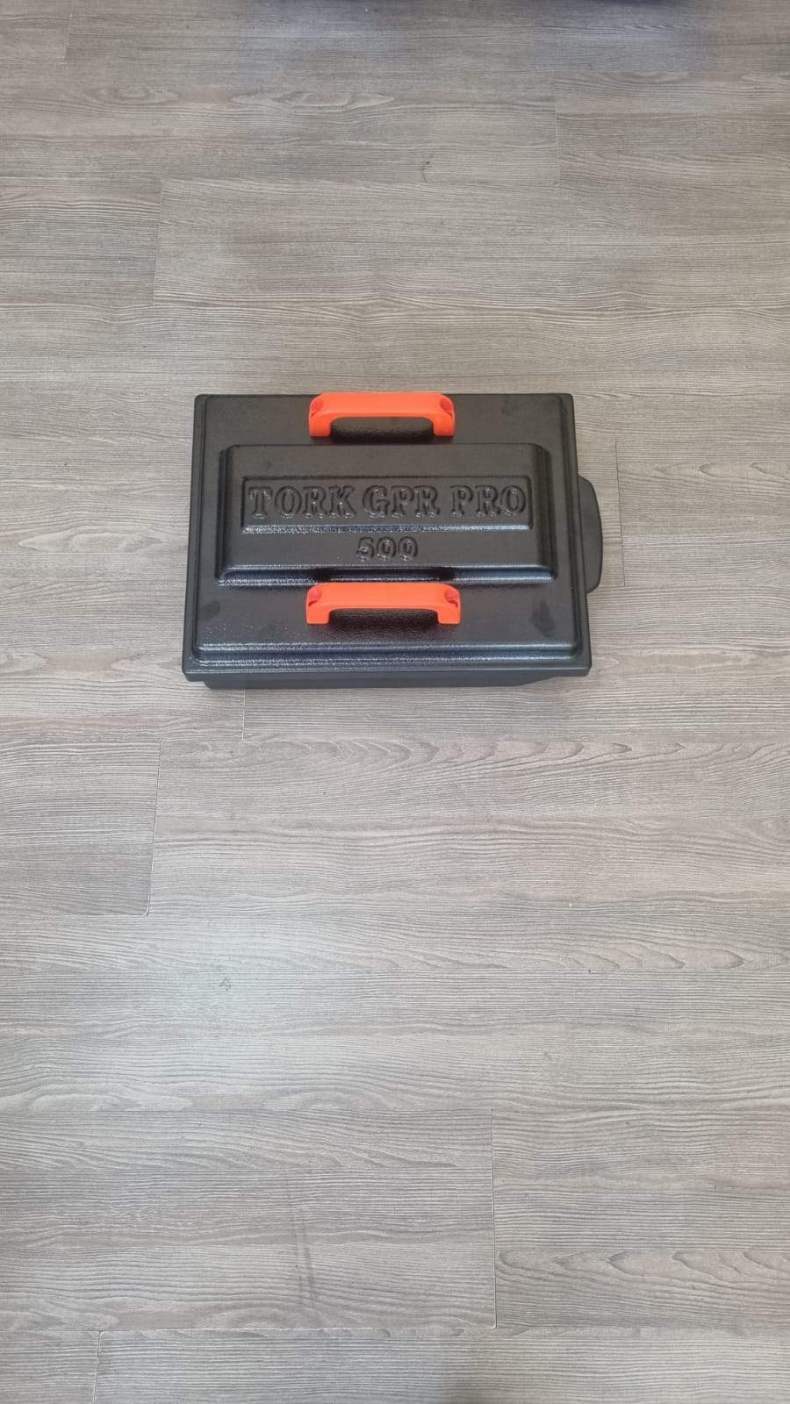

Tork Gpr Pro 500Mhz Ground Radar

Hardware features:
Central freq: 300 MHz
1024-512-256-128 scans per scan with 14bit resolution
Realtime Unique and portable to use GPR software
RPS: 100 KHz
Ultra high voltage
User selected strong realtime filters(digital)
Time window: 150nS
Power consumption: 5V, 800 mAh (external powerbank)
Optional Odometer
3d analyze on Voxler 2d analyze on Prism and its own software
Zero blind point
Very high resolution
Up to 20 hours continuous operating time
Free training
2 years of Farmet Warranty

Software Features:
English/Turkish realtime data software
9 different color pallettes are selectable
Realtime filters on operation
Realtime ground dielectrics selection
.sgy data outputs
Gain functions are realtime

Physical Features:
Weight: appr. 5kgs (only the antenna)


Usage Areas:

* Archeogeophysics

* Geophysics and Geological researching

* Mining

* Archeology

* Concrete analysis

* Municipalities

* Forensic/Crime investigations

* Bridge and Dam Installation analysis etc

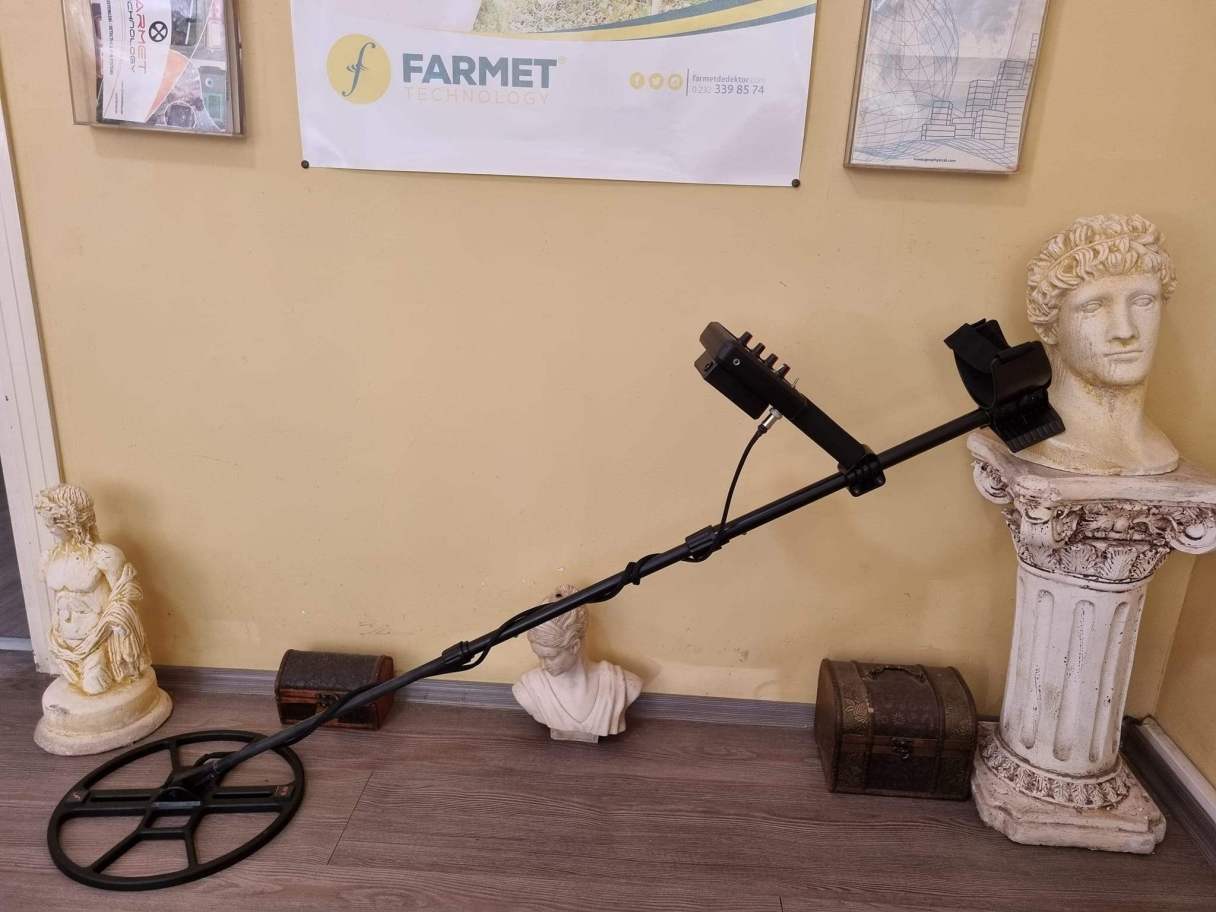

Technical Specs :

Operating frequency: Dual freq. 8khz 18khz

Operating current and voltage: 8,4V, 100mAh
Discrimination: Ferrous unwanted metal rejection

Telescopic shafts

Can be operated under the powerlines easily

Li-ion internal battery

Auto and Manual ground balance

Standart coil: 32cm DD (12.5″DD)

Optional coils: 9″DD (22cm), 11″DD (27cm ), 15″DD (38cm )
2 years of international warranty

farmet 8.18 metal detector

ground penetratıng radar tork pro 500

ground penetratıng radar tork pro 300
